Asus fan holder что это
FAN EXTENSION CARD
view on your table
View the model in 3D
Для эффективного охлаждения компьютера
Если вашему компьютеру с мощной конфигурацией нужно дополнительное охлаждение — воспользуйтесь контроллером Fan Extension Card, который позволит подключить три дополнительных 12-ваттных вентилятора и регулировать их работу через систему UEFI BIOS или специальную утилиту Fan Xpert.
Совместимость с утилитой Fan Xpert версий 3 и 4
Данный контроллер поддерживает такие функции утилиты Fan Xpert как автоматическая калибровка и создание профилей, поэтому все вентиляторы могут регулироваться на базе единого набора настроек. Для отслеживания температуры в комплект поставки входят термисторы, которые можно поместить в любом уголке компьютерного корпуса.
Прикрепите к контроллеру винтами две металлические Г-образные скобы.
Установите контроллер в отсек для оптического привода*, выровняв отверстия в скобах с монтажными отверстиями отсека.
*При отсутствии в корпусе отсека для оптического привода с соответствующими монтажными отверстиями контроллер Fan Extension Card можно закрепить в любом другом месте. При установке используйте изолирующий материал, чтобы контроллер не контактировал напрямую с другими компонентами или самим корпусом, поскольку это может вызвать короткое замыкание и привести к повреждению устройства.
PRIME Z370-A
view on your table
View the model in 3D
1 2 x USB 3.1 Gen 2
(Type-A/C)
7 2 x USB 3.1 Gen 1
8 8CH Audio with DTS Support
9 3 x PCIe 3.0 (GEN3)
SLI & 3-Way
CFX Support
13 DDR4 4000(O.C) support
14 Intel ® LGA 1151 Socket
15 2 x 32Gb/s M.2 x4 support
16 Front USB 3.1 Gen 1
19 Front USB 3.1 Gen 1
ASUS Prime Z370 Series motherboards provide the solid foundation needed for your first build, plus loads of scope to grow with your ambitions. We’ve melded all the good stuff that’s packed into the latest 8th Generation Intel® Core™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, immersive onboard audio, and support for the ASUS Fan Extension Card. Build smart and easy with ASUS Prime Z370.
5-Way Optimization
One-click overclock and cooling, done!
ASUS 5-Way Optimization makes your PC smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.
An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
Stress test function helps optimize and overclock for CPU- or memory-centric workloads.
Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.
With the Energy Processing Unit (EPU) you’ll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
With Prime Z370-A you have comprehensive control over fans, water pumps, and even all-in-one (AIO) coolers ― all via Fan Xpert 4 or our media-acclaimed UEFI. Whether you’re cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There’s also Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.
Digi+ delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.
Whether you’re a professional designer or hardcore gamer, you’ll feel the benefit of the ASUS-exclusive Turbo App. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level ― so your Prime Z370-A system is perfectly optimized for whatever you’re doing.
Make your memory go faster
ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing memory speeds of DDR4-4000 and beyond with all slots populated.
OC Design – ASUS Pro Clock Technology
Prime Z370-A includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel Core 8th Generation processors.
Cooler by design
Prime Z370-A features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Each header can be set to monitor and react to three thermal sensors, and via Fan Xpert 4 you can even assign a sensor to monitor the temperature of supported ASUS graphics cards — for optimal cooling during GPU- or CPU-intensive workloads.
A dedicated PWM/DC header for self-contained water-cooling setups.
Each onboard header supports auto-detection of PWM or DC fans.
Includes three additional DC or PWM fan headers, plus three thermal-probe headers.
A dedicated integrated circuit protects each fan header from over-temperature and over-current.
ASUS Fan Holder
With the all-new ASUS Fan Holder increasing airflow your Prime Z370 Series motherboard’s VRM area is simple. Just screw on a 40/50mm fan, mount the bracket on the heatsink, and hook the fan up to a header for a targeted cooling boost. With the Fan Holder and fan in place, VRM temperatures are reduced by up to 25 o C — perfect for your overclocking adventures.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controllable graphical BIOS has been improved to make it even more appealing. Whether you’re a PC novice or a seasoned overclocker, EZ and Advanced modes will help you quickly find your way, quickly and easily.
EZ Tuning Wizard Quickly apply a CPU overclock to improve system performance, or configure a RAID array for faster data retrieval and backups
My Favorites Quickly discover tuning options and add preferred tools to the list.
Intuitive graphical fan control: Fine-tune individual fans simply by dragging a curve with the mouse.
EZ XMP: Improve your DRAM performance with a click.
SATA Information: Display SATA port details that help you easily recognize drives.
Fast Clock Adjustment: Use mouse controls to change the time and date.
GPU POST: View recommendations for multi-VGA configurations and detailed information for select ASUS graphics cards.
Secure Erase: Restore your SSDs to factory-fresh condition.
Last Modified Log: Track last change and save preferred profiles onto a USB drive.
SATA Port Renaming: Rename SATA ports for easy identification.

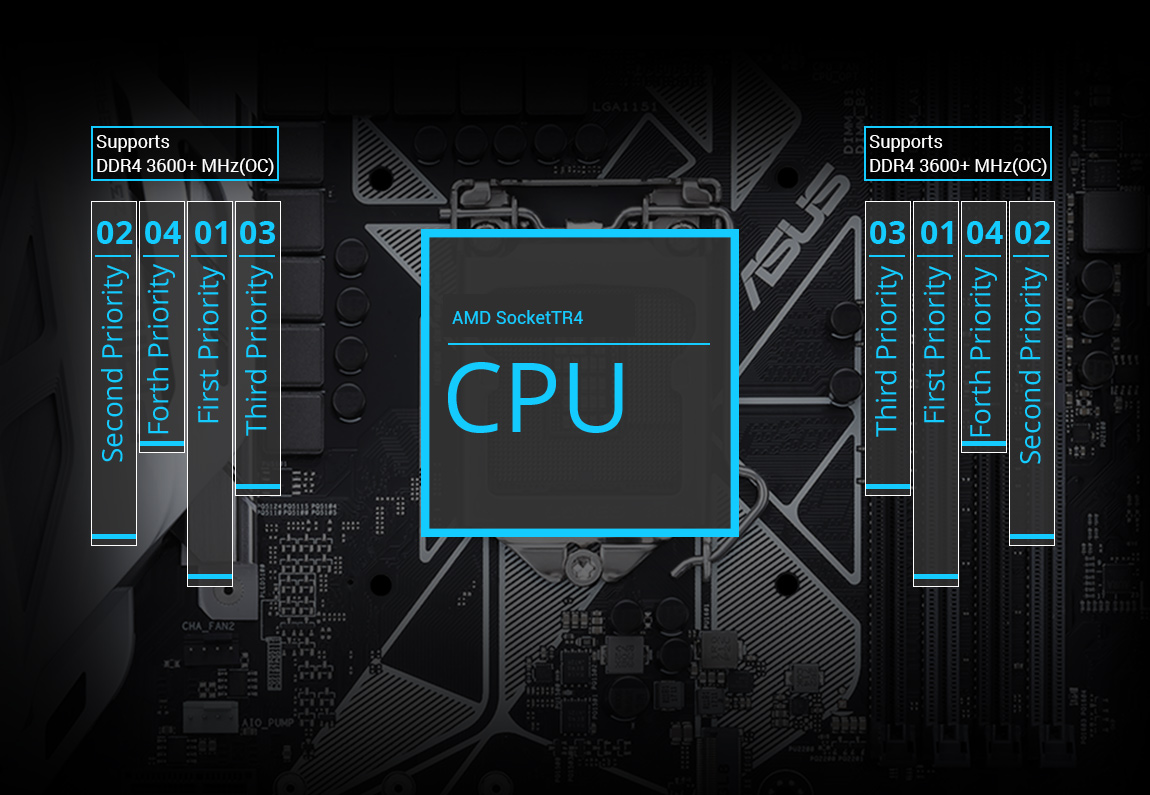

Make your memory go faster
Prime X399-A is engineered to support quad-channel memory kits rated up to a staggering DDR4 3600MHz, allowing you to get the best performance from the X399 platform. We’ve worked with all major DDR4 memory vendors to help ensure compatibility, so you’re assured the best compatibility.
CPU : Ryzen™ Threadripper™ 1950X | Motherboard: PRIME X399-A |
DRAM : G.Skill F4-3866C18Q-16GTZ | PSU: Cooler Master-RS850-AFBA-G1 | Water-cooling : Corsair H115i
Speed up with onboard M.2 up to 32Gbps
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It’s the perfect choice for an operating system or application drive, providing fast access to data.
M.2 heatsink
Keep your SSD cooler
Prime Z370-A has an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20°C — and that means optimal storage performance and improved SSD longevity.
3D-Printable M.2 fan mount
Active cooling for your SSD
ASUS Prime Z370-A features dedicated mounting points for the ASUS 3D-printable M.2 cooler. Supporting a 40mm fan, the M.2 cooler teams up with the onboard M.2 heatsink to reduce drive temperatures by up to 25°C, ensuring your high-performance SSD always delivers peak performance.
3D-printable accessories
As system parts are visible in custom PC builds, make yours stand out from the competition with 3D-printed accessories.
Graphics card holder Prevent sag by providing support for heavy graphics cards.
2-Way SLI HB Bridge cover Clip the cover onto the SLI HB Bridge to add style to your build. Multiple form factors — EATX, ATX and mATX — are available.
Fan grill Make your cooling a little cooler.
Cable combs Keep cables organized with the multi-connector design. 3D design files are available for 24-pin, 8-pin, 8 + 6-pin, 6-pin and 4-pin PSU connectors.
Guide to start 3D printing
Download Select the 3D source files you want to download.
Personalize Adjust size or shape, add text or change other attributes.
Print Use your own printer, or visit a local vendor or ASUS store with Shapeways.
Setup Easily assemble and fit your 3D-printed parts using M.2 nuts or existing case mounts.

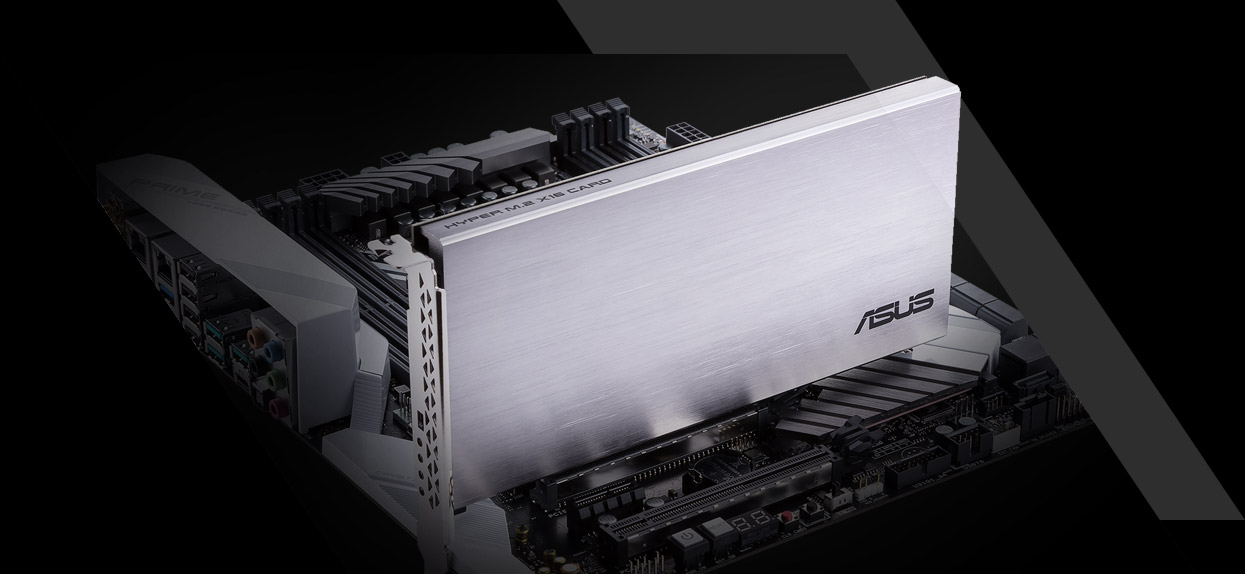

Upgrade your RAID
Unleash the Prime X299-Deluxe Virtual RAID on CPU (VROC) feature with the addition of an ASUS Hyper M.2 X16 Card*, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives — for a total bandwidth of up to 128Gbps. With VROC, you can utilize CPU PCIe lanes to configure a bootable RAID array, eliminating traditional DMI bottlenecks, so that storage transfers aren’t held back by other traffic.
U.2 connector
Join the NVMe revolution
The revolutionary specification that lets your SSDs scream at top speed. Just attach your chosen drive to with plug-and-play ease to experience data-transfer speeds of up to 32Gbps — and free up a PCIe slot for another expansion card.
Intel Optane memory
Intel Optane memory ready
Intel Optane™ is a revolutionary non-volatile memory technology supported by Prime Z370-A. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

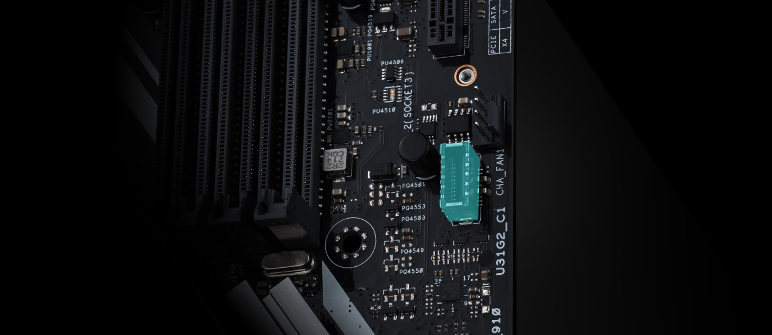

USB 3.1 Gen 2 front-panel connector
Future-proof connectivity
Prime X399-A’s front panel USB 3.1 connector is ready for next-gen PC cases and devices.
USB 3.1 Gen 2 Type-A & Type-C
Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard
With backward-compatible USB 3.1 Gen 2 Type-A™ and reversible USB 3.1 Gen 2 Type-C™ ports, you’ll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.
ThunderboltEX 3 Card
Experience blistering Thunderbolt TM 3 speeds and any-way-up connectivity
Prime Z370-A provides full support for a ThunderboltEX 3* card. An Intel-certified Thunderbolt™ 3 add-on card enables breathtaking bi-directional speeds of up to 40Gbps through a single cable — up to 4X faster than other PC data-transfer protocols. Beyond sheer bandwidth, Thunderbolt 3 supports daisy-chaining up to six devices, utilizes a Type-C reversible connector for compatibility with the latest USB 3.1 Gen 2 Type-C devices, and meets USB Power Delivery specifications for fast, high-power charging of up to 36W.
*ThunderboltEX 3 card available separately for purchase.
802.11ad Wi-Fi
Fastest onboard Wi-Fi up to 4.6 Gbps
Prime X299-Deluxe is engineered with the very latest 802.11ad (WiGig) Wi-Fi* for ultrafast, lag–free wireless connections of up to 4.6Gbps**, delivering smooth streaming of 4K UHD video and faster, slicker VR experiences!
* Availability of 801.11ad (WiGig) varies by region. Check with your local ASUS representative for more details.
** Actual speed varies, and depends on networking conditions.
Intel Ethernet
More throughput, less CPU usage
Prime Z370-A features the very latest Intel Ethernet. Intel’s LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.
LANGuard
Pumped-up throughput, 2.5x higher surge tolerance
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.
Turbo LAN
Network-optimization software for customizable packet prioritization
Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface, and reduces network lag.

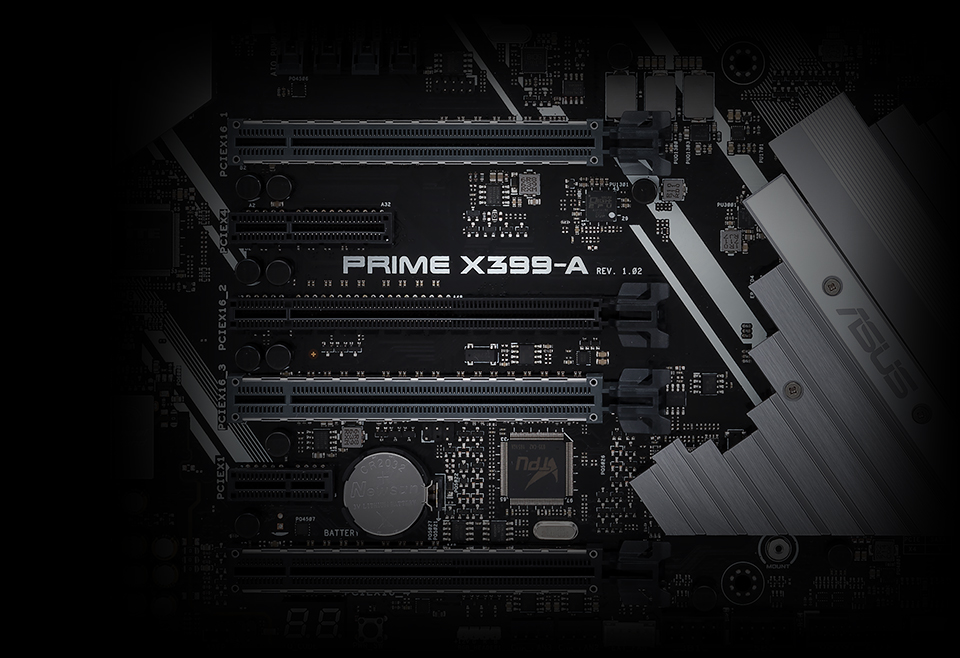

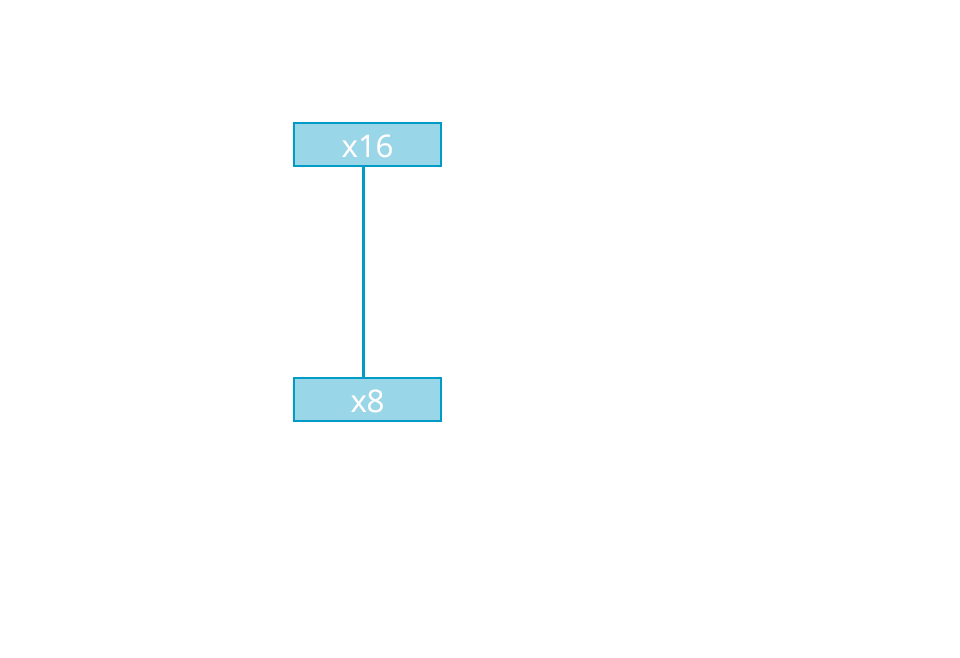

Multi-GPU support
With support for both NVIDIA ® SLI™ and AMD CrossFireX™ 2/3-WAY configurations, Prime X399-A motherboard enables multi-GPU setups so you can harness the full power of the latest graphics technologies to drive games at 4K and beyond.
SafeSlot
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Built to Last
ASUS is the world’s foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.
Hardware safeguards to ensure long-term durability.
Industry-leading DDR4 memory compatibility for best flexibility and reassurance.
Compatibility with a range of CPUs, memory modules, graphics cards and more.
Extensive testing with latest components for enhanced reliability, compatibility and safety.
Prime series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world’s leading motherboard brand.
SafeSlot Core
Fortified PCIe slot prevents damage
Our Prime Z370 motherboards also have strengthened solder points around both the PCIe and DIMM pins.
LANGuard
Pumped-up throughput, 2.5X-higher surge tolerance
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators protects your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide assure a lifespan that’s 3X longer than ordinary panels.
ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge.
Compatible devices and components
The superior compatibility of Prime Z370-A is evidenced by our extensive list of supported devices — which includes thousands of compatible components — and our Qualified Vendor List (QVL) that identifies memory compatibility. It all adds up to more choices for worry-free PC-building experiences.
VALIDATION HOURS
Outstanding audio
Realtek codec and unique design features for pristine, powerful audio
Prime Z370-A utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts gain to ensure the optimal volume range for your headphones.
DTS Headphone:X TM Surround sound
Immersive 3D surround-sound technology provides incredible audio experiences.
Crystal Sound 3
Flawless audio that immerses you in the game
Reduces power-input noise to ensure consistent performance.
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Ensures minimal crosstalk between audio paths.
Capable of driving high-impedance headphones, without rolling-off high or low frequencies.
Reduces start-up popping noise to all audio outputs.
Premium parts provide an immersive sound signature, with exceptional fidelity.
LiveDash
See system info at a glance
Prime X299-Deluxe includes LiveDash, a built-in OLED dashboard that displays custom information such as system temperatures, CPU frequency, fan speed and error messages — so everything you need to know is available at a glance.
Addressable RGB LED strip header
Control every LED
Aura Sync
Outshine the competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full RGB control with a variety of functional presets for the built-in RGB LEDs as well as the LED strips connected to the onboard RGB headers.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
* The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.
** LED Strips and Aura-compatible devices are sold separately.
Beyond VR ready
Complete your immersion
Prime Z370-A isn’t just VR ready — it goes way beyond. The ASUS Beyond VR Ready marque means that Prime Z370-A has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.
Intel Z370 chipset The Intel ® Z370 is a single-chipset design that supports 8th Generation Intel ® Core™ LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the Z370 provides a maximum of 10 USB 3.1 Gen 1 ports, six SATA 6Gbps ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z370 also supports integrated-graphics, so you’ll enjoy the very latest in graphics performance.
